Assembly for a connection system in building services engineering

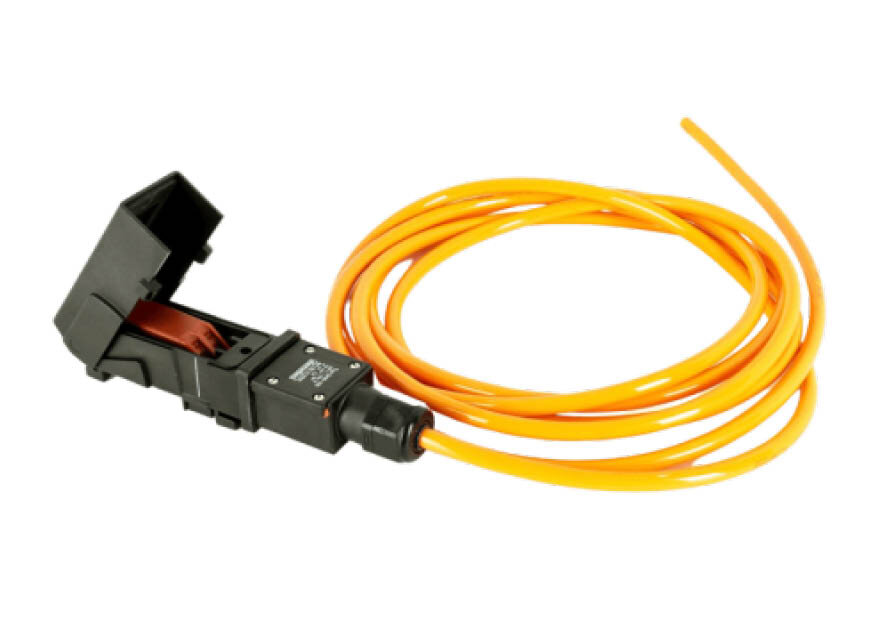

  • A black connection system for heating tapes, featuring an open housing and visible copper contacts. A bright orange cable is connected to it and coiled into a loop against a plain background.

  • Precision joining solution for the DomoClick® system

    Since 1976, DOMOTEC AG has been setting standards in building services engineering. As an innovative Swiss manufacturer, the company offers well-designed solutions for water heating, frost protection and energy efficiency in buildings, ranging from heat pumps to solar systems. Quality and reliability have always been at the heart of its operations.


    For several years now, Vogt AG Verbindungstechnik has been manufacturing an assembly for DOMOTEC that is installed in the DomoClick® system.


    The DomoClick® system enables a quick, secure and standardised connection of heating tapes. Installation requires few tools and can be completed in just a few steps.

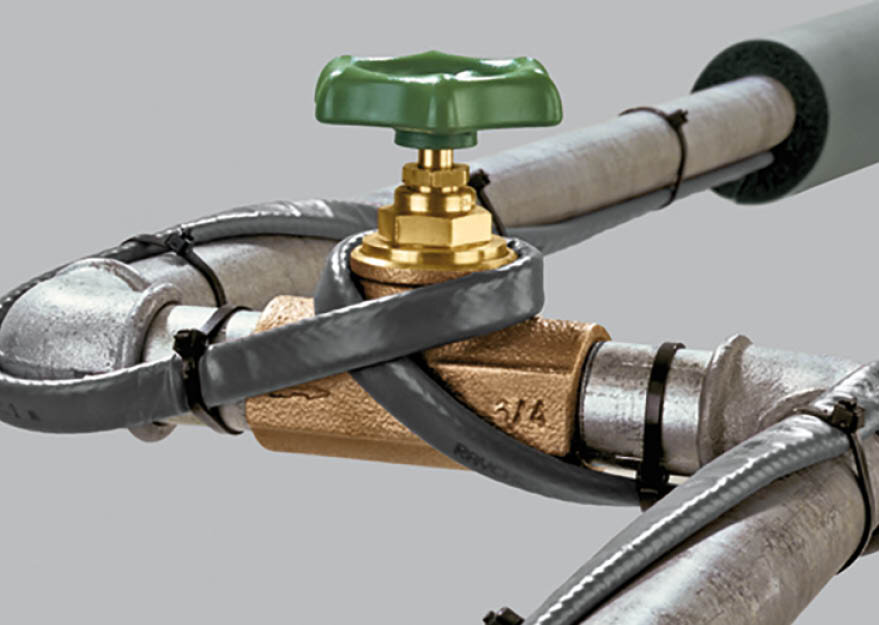

    Trace heating tapes ensure that pipes are kept at the correct temperature (Therma-Protect), prevent frost damage (Frost-Protect) and ice formation (Ice-Protect). They make a significant contribution to operational safety in buildings.

  • Two red clamping bars for a heating tape connection system are arranged side by side, photographed from above and from below respectively. Metallic phase conductors and clamping elements are visible in the top view, revealing the internal contact points.

  • The components manufactured by Vogt, consisting of an injection-moulded plastic clamping bar and stamped phase conductors, form a central part of the DomoClick® system.


    A polyamide reinforced with 35% glass fibre was used for the clamping bar, which is characterised by very high strength and stiffness. The material is flame-retardant, has good chemical resistance and excellent wear and sliding properties.


    The nickel-plated bronze phase conductors fitted into the crimping bar offer good corrosion protection, which is of great importance for this application. The phase conductors are complex stamped and bent parts, which Vogt manufactures in its own stamping workshop. In this assembly, the phase conductors are assembled man

    ually, which is two-thirds cheaper than manufacturing using a complex insert moulding tool.
    The assembly for the DomoClick® system demonstrates how Vogt AG Verbindungstechnik combines technical requirements with cost-effective manufacturing. Precision, material expertise and manufacturing competence make us a reliable partner for demanding applications in building services engineering.

Product overview: DomoClick® trace heating cables

  • Therm-Protect

    For maintaining the temperature in hot water pipes. Prevents the water from cooling down and ensures a constant supply of hot water. Suitable for domestic and commercial use.

  • Ice-Protect

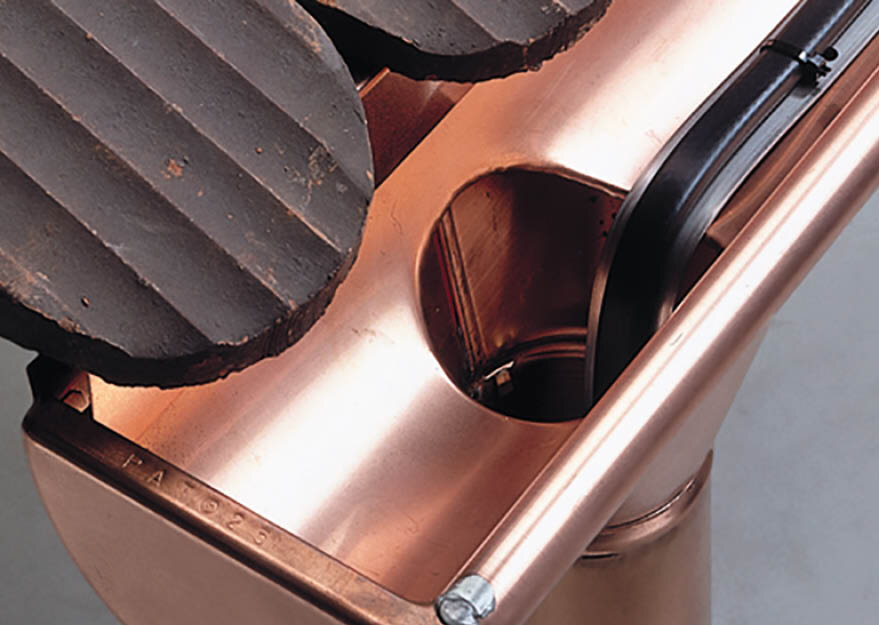

    For gutters and drainage systems. Prevents ice formation, blockages and water backflow, and protects buildings from consequential damage.

  • Frost-Protect

    To protect water pipes, taps and drains from frost. Ensures they continue to function even at low temperatures and reduces the risk of damage.
